SCANSTA101

Low Voltage IEEE 1149.1 STA Master

SCANSTA101 Features

* of the STA101 further allow it to offload some of the processor overhead while remaining flexible. The device architecture supports IEEE 1149.1, BIST, and IEEE 1532. The flexibility will allow it to adapt to any changes that may occur in 1532 and support yet unknown variants. The SCANSTA101 is usefu

SCANSTA101 General Description

The SCANSTA101 is designed to function as a test master for a IEEE 1149.1 test system. The minimal requirements to create a tester are a microcomputer (uP, RAM/ROM, clock, etc.), SCANEASE r2.0 software, and a STA101. The SCANSTA101 is an enhanced version of, and replacement for, the SCANPSC100. The .

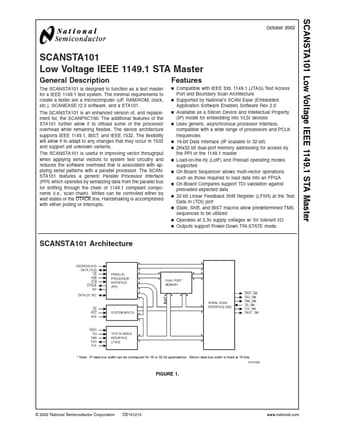

SCANSTA101 Datasheet (403.60 KB)

Preview of SCANSTA101 PDF

Datasheet Details

Part number:

SCANSTA101

Manufacturer:

National Semiconductor

File Size:

403.60 KB

Description:

Low voltage ieee 1149.1 sta master.
