SCANSTA112

7-port Multidrop IEEE 1149.1 (JTAG) Multiplexer

SCANSTA112 Features

* n True IEEE 1149.1 hierarchical and multidrop addressable capability n The 8 address inputs support up to 249 unique slot addresses, an Interrogation Address, Broadcast Address, and 4 Multi-cast Group Addresses (address 000000 is reserved) 20051250 FIGURE 1. Typical use of SCANSTA112 for board-lev

SCANSTA112 General Description

The SCANSTA112 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANST.

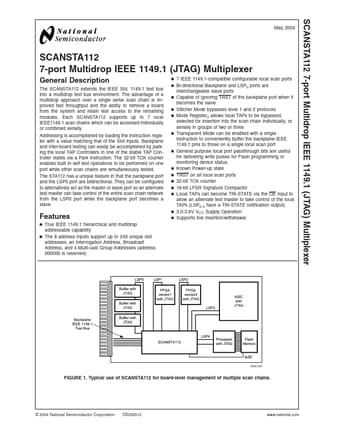

SCANSTA112 Datasheet (300.49 KB)

Preview of SCANSTA112 PDF

Datasheet Details

Part number:

SCANSTA112

Manufacturer:

National Semiconductor

File Size:

300.49 KB

Description:

7-port multidrop ieee 1149.1 (jtag) multiplexer.
