SCANSTA476

Eight Input IEEE 1149.1 Analog Voltage Monitor

SCANSTA476 Features

* a common IEEE 1149.1 (JTAG) interface to select the analog input, initiate a measurement, and access the results - further extending the capabilities of an existing JTAG infrastructure. The SCANSTA476 uses the VREF input as a reference. This enables the SCANSTA476 to operate with a full-scale input

SCANSTA476 General Description

The SCANSTA476 is a low power, Analog Voltage Monitor used for sampling or monitoring up to 8 analog/mixed-signal input channels. Analog Voltage Monitors are valuable during product development, environmental test, production, and field service for verifying and monitoring power supply and reference.

SCANSTA476 Datasheet (502.19 KB)

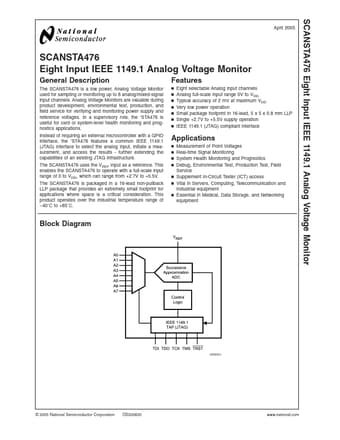

Preview of SCANSTA476 PDF

Datasheet Details

Part number:

SCANSTA476

Manufacturer:

National Semiconductor

File Size:

502.19 KB

Description:

Eight input ieee 1149.1 analog voltage monitor.
