PHMB300A6 IGBT MODULE

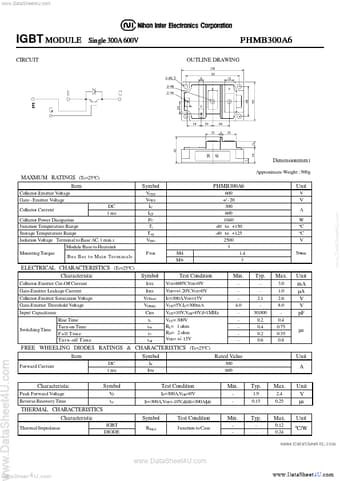

www.DataSheet4U.com IGBT MODULE CIRCUIT Single 300A 600V OUTLINE DRAWING PHMB300A6 Dimension(mm) MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Approximate Weight : 500g Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR M4 M6 PHMB300A6 600 +/ - 20 300 600 1040 -40 to +150 -40 to +125 2500 3 1.4 3 Unit V V A W °C °C V N m www.DataSHeet4U.com Collector Power Dissipation Junction Temperature Range Storage Temperature Range Isolati.
