PHMB300E6 Datasheet - Nihon Inter Electronics

PHMB300E6 - IGBT

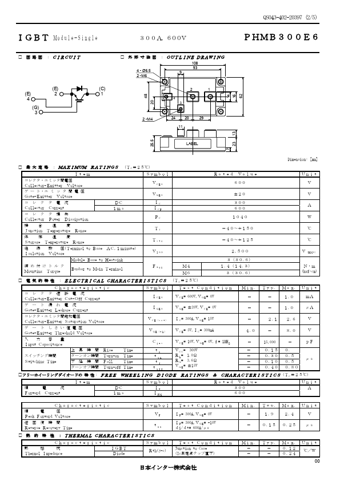

IGBT Module-Single 300A,600V QS043-402-20397(2/5) PHMB300E6 : CIRCUIT (E) 4 (G) 3 (E) 2 : OUTLINE DRAWING 4 - Ø6.5 2 -M6 108 93 9 48 20 (C) 2 1 1 4 3 2 -M4 24 20 11 29 7 14 23 13 16 62 25.5 LABEL Dimension:[mm] : MAXIMUM RATINGS (TC=25℃) Item Symbol Collector-Emitter Voltage VCES Gate-Emitter Voltage VGES Collector Collector Current Power Dissipation DC 1ms IC ICP PC Junction Temperature Range Tj Storage Tem
