PHMB300B12 Datasheet - Nihon Inter Electronics

PHMB300B12 IGBT MODULE

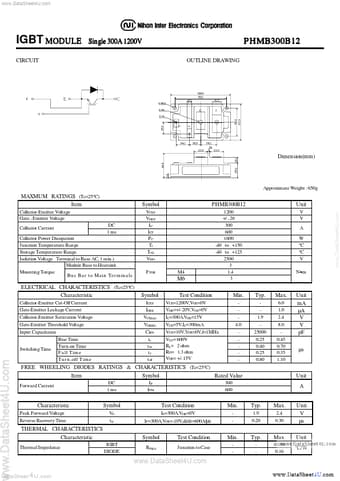

www.DataSheet4U.com IGBT MODULE CIRCUIT Single 300A 1200V OUTLINE DRAWING PHMB300B12 Dimension(mm) Approximate Weight : 650g MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR M4 PHMB300B12 1200 +/ - 20 300 600 1600 -40 to +150 -40 to +125 2500 3 1.4 3 Unit www.DataSHeet4U.com V V A W °C °C V N m Collector Power Dissipation Junction Temperature Range Storage Temperature Range Isol.

PHMB300B12 Datasheet (292.64 KB)
