P5504EVG P-Channel Logic Level Enhancement Mode Field Effect Transistor

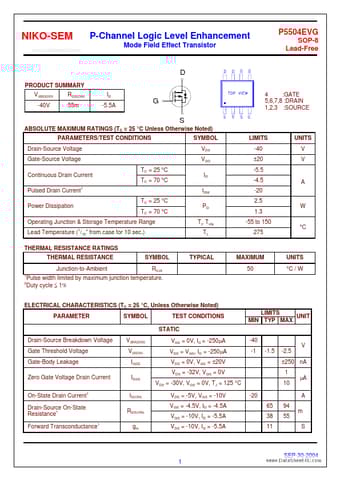

NIKO-SEM www.DataSheet4U.com P-Channel Logic Level Enhancement Mode Field Effect Transistor P5504EVG SOP-8 Lead-Free D PRODUCT SUMMARY V(BR)DSS -40V RDS(ON) 55m ID -5.5A 4 :GATE 5,6,7,8 :DRAIN 1,2,3 :SOURCE G S ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation 1 SYMBOL VDS VGS LIMITS -40 ±20 -5.5 -4.5 -20 2.5 1.3 -55 to 150 275 UNITS V V TC = 25 .
