2SB1215 - Bipolar Transistor

2SB1215 Description

Ordering number : EN2539C 2SB1215/2SD1815 Bipolar Transistor ( *)100V, ( *)3A, Low VCE(sat) (PNP)NPN Single TP/TP-FA http://onsemi.com.

2SB1215 Features

* Low collector to emitter saturation voltage
* Excllent linearity of hFE
* Small-sized package permitting 2SB1215/2SD1815-applied sets to be made small and slim
* High fT
* Fast switching time
* Halogen free compliance Speciļ¬cations ( ): 2SB121

📥 Download Datasheet

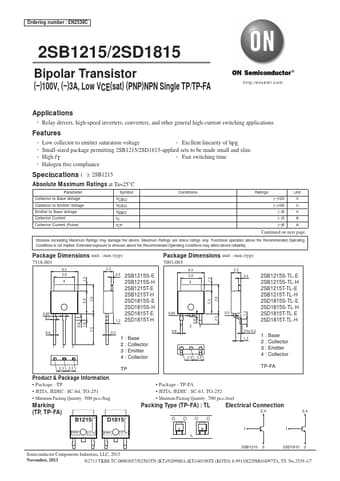

Preview of 2SB1215 PDF
datasheet Preview Page 2 datasheet Preview Page 3
