FDC6331L - Integrated Load Switch

ON Semiconductor

📥 Download Datasheet

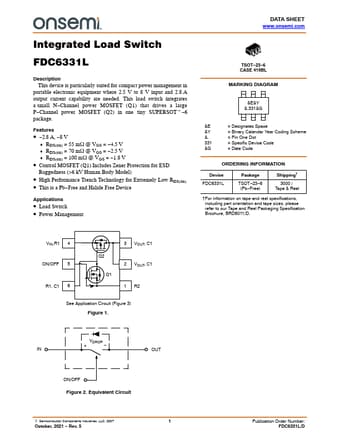

FDC6331L Datasheet Preview — Preview of FDC6331L PDF

Datasheet Details

Part number	FDC6331L
Manufacturer	ON Semiconductor
File Size	296.35 KB
Description	Integrated Load Switch
Datasheet	FDC6331L-ONSemiconductor.pdf

FDC6331L Product details

Description

This device is particularly suited for compact power management in portable electronic equipment where 2.5 V to 8 V input and 2.8 A output current capability are needed.This load switch integrates a small N Channel power MOSFET (Q1) that drives a large P Channel power MOSFET (Q2) in one tiny SUPERSOTt 6 package.

Features

2.8 A,.
8 V.
RDS(on) = 55 mW @ VGS =.
4.5 V.
RDS(on) = 70 mW @ VGS =.
2.5 V.
RDS(on) = 100 mW @ VGS =.
1.8 V.
Control MOSFET (Q1) Includes Zener Protection for ESD Ruggedness (>6 kV Human Body Model).
High Performance Trench Technology for Extremely Low RDS(on).
This is a Pb.
Free and Halide Free Device.
