NLA16T245 - 16-Bit (Dual 8-Bit) Configurable Dual-Supply Translating Transceiver

Datasheet Summary

Description

A Port DC Power Supply B Port DC Power Supply Ground Output Enable Pins Direction Select Pins A Port I/O B Port I/O Function table nOE L L H nDIR L H X Operating Mode nB to nA nA to nB nA and nB Ports at Hi Z http://onsemi.com 2 NLA16T245 MAXIMUM RATINGS

Features

Wide VCCA and VCCB Operating Range: 0.9 V to 4.5 V.
Output Noise Reduction through Dynamic Output Impedance Change.
Drive Capability: ±12 mA @ 3.0 V VCC.
Input/Output Pins OVT to 5.5 V.
Control Inputs Track VCCA.
Non.
preferential VCC Sequencing.
Outputs at 3.
State until Active VCC is reached.
Power.
Off Protection.
Outputs Switch to 3.
State with either VCC at GND.
Pb.

Datasheet Details

Part number	NLA16T245
Manufacturer	ON Semiconductor
File Size	179.85 KB
Description	16-Bit (Dual 8-Bit) Configurable Dual-Supply Translating Transceiver
Datasheet	NLA16T245 Datasheet

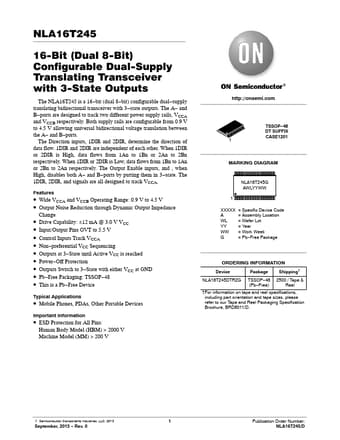

Additional preview pages of the NLA16T245 datasheet.

📁 Similar Datasheet

NLA9306 - Voltage-Level Translator (ON Semiconducto)

NLAS2750 - Low Voltage Dual SPDT Analog Switch (ON Semiconducto)

NLAS323 - Dual SPST Analog Switch (ON)

NLAS324 - Dual SPST Analog Switch (ON)

NLAS3699 - Dual DPDT Switch (ON)

NLAS4053 - Analog Multiplexer/Demultiplexer (ON)

NLAS4599 - Low Voltage Single Supply SPDT Analog Switch (ON)

NLAS4684 - Ultra-Low Resistance Dual SPDT Analog Switch (ON)

NLAST4051 - Analog Multiplexer/Demultiplexer (ON)

Full PDF Text Transcription

Click to expand full text

NLA16T245 16-Bit (Dual 8-Bit) Configurable Dual-Supply Translating Transceiver with 3-State Outputs The NLA16T245 is a 16−bit (dual 8−bit) configurable dual−supply translating bidirectional transceiver with 3−state outputs. The A− and B−ports are designed to track two different power supply rails, VCCA and VCCB respectively. Both supply rails are configurable from 0.9 V to 4.5 V allowing universal bidirectional voltage translation between the A− and B−ports. The Direction inputs, 1DIR and 2DIR, determine the direction of data flow. 1DIR and 2DIR are independent of each other. When 1DIR or 2DIR is High, data flows from 1An to 1Bn or 2An to 2Bn respectively. When 1DIR or 2DIR is Low, data flows from 1Bn to 1An or 2Bn to 2An respectively.
