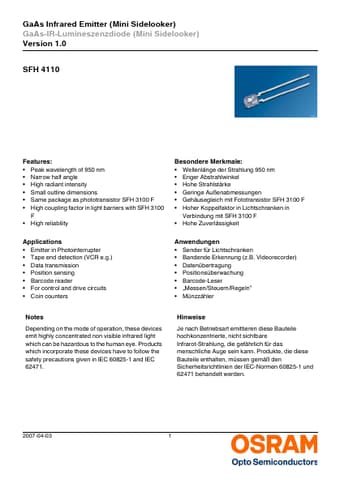

SFH4110 Datasheet, Emitter, OSRAM

SFH4110 Features

• Emitter
• Peak wavelength of 950 nm
• Narrow half angle
• High radiant intensity
• Small outline dimensions
• Same package as phototransistor SFH 3100 F

PDF File Details

Part number:

SFH4110

Manufacturer:

OSRAM

File Size:

152.46kb

Download:

📄 Datasheet

Description:

Gaas infrared emitter.

SFH4110 Application

• Applications
• Emitter in Photointerrupter
• Tape end detection (VCR e.g.)
• Data transmission
• Position sensing
