* q q s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg (Ta=25˚C) Ratings 40 20 7 8

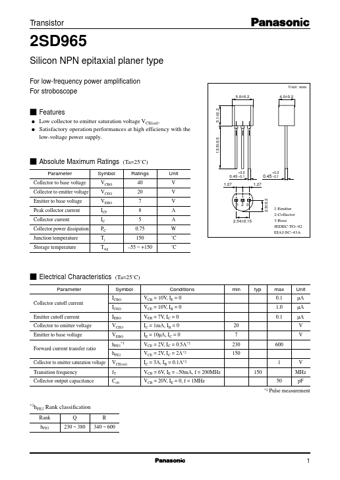

2SD965
Panasonic Semiconductor
39.30 KB
Silicon npn transistor.
Transistor
2SD965
Silicon NPN epitaxial planer type
For low-frequency power amplification For stroboscope
5.1±0.2
Unit: mm
5.0±0.2 4.0±0.2
s Featur.
