Part number:
2SK3560
Manufacturer:
Panasonic Semiconductor
File Size:
76.43 KB
Description:

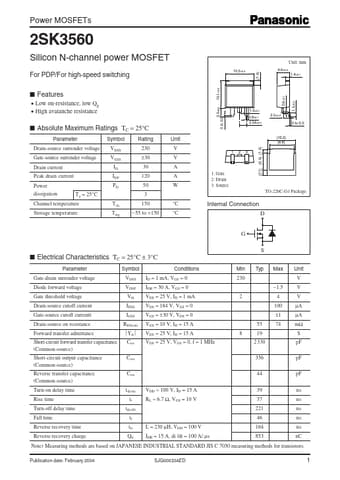

N-channel mosfet.
* Low on-resistance, low Qg
* High avalanche resistance 10.1±0.3 (1.4) 10.5±0.3 4.6±0.2 1.4±0.1 Unit: mm 0.6±0.1 1.4±0.1 0.8±0.1 2.54±0.3 2.5±0.2 (10.2) (8.9) 1 2 3 (6.4) (1.4) (2.1) 3.0±0.5 0 to 0.5
* Absolute Maximum Ratings TC = 25°C Parameter Drain-source surrender voltag
2SK3560
Panasonic Semiconductor
76.43 KB
N-channel mosfet.
