2SK3567 N-Channel MOSFET

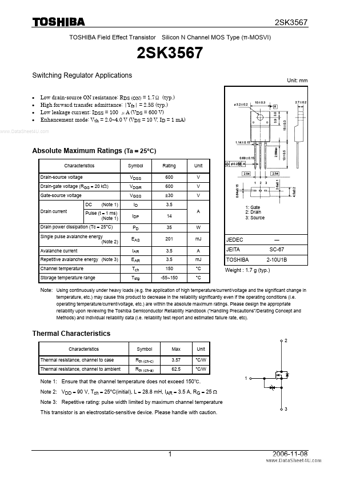

2SK3567 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSVI) 2SK3567 Switching Regulator Applications Low drain-source ON resistance: RDS (ON) = 1.7Ω (typ.) High forward transfer admittance: |Yfs| = 2.5S (typ.) Low leakage current: IDSS = 100 μA (VDS = 600 V) Enhancement mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Unit: mm www.DataSheet4U.com Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Drain-gate voltage (.
