BD9582F

EARTH LEAKAGE CURRENT DETECTOR

BD9582F Features

* Small temperature fluctuation and high input sensitivity

* Wide operating temperature range

* Packages SOP8 SIP8 W(Typ.) x D(Typ.) x H(Max.) 5.00mm x 6.20mm x 1.71mm 19.30mm x 10.50mm x 3.00mm

* Applications

* Earth leakage circuit breaker

* Earth leakage circuit relay

BD9582F General Description

BD9582F/BD9582N integrates leakage detector and amplifier. Especially, it is suitable for high sensitivity and a highspeed operation use, and since the operating temperature range is wide, it can be used for various uses.
*Key Specifications
* Operating supply voltage range: 12V to 22V <.

BD9582F Datasheet (487.68 KB)

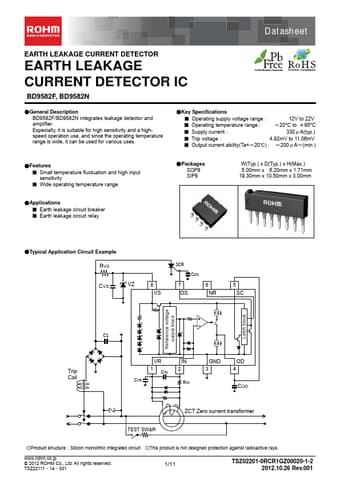

Preview of BD9582F PDF

Datasheet Details

Part number:

BD9582F

Manufacturer:

ROHM ↗

File Size:

487.68 KB

Description:

Earth leakage current detector.
