BD9582N, BD9582F - EARTH LEAKAGE CURRENT DETECTOR

BD9582N Description

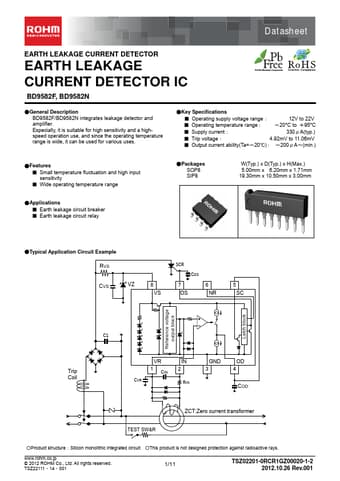

Datasheet EARTH LEAKAGE CURRENT DETECTOR EARTH LEAKAGE CURRENT DETECTOR IC BD9582F, BD9582N *General .
BD9582F/BD9582N integrates leakage detector and amplifier.

BD9582N Features

* Small temperature fluctuation and high input sensitivity
* Wide operating temperature range
* Packages SOP8 SIP8 W(Typ. ) x D(Typ. ) x H(Max. ) 5.00mm x 6.20mm x 1.71mm 19.30mm x 10.50mm x 3.00mm

BD9582N Applications

* Earth leakage circuit breaker
* Earth leakage circuit relay
* Typical Application Circuit Example RVS CVS VZ 8 VS SCR COS 7 OS 6 NR 5 SC Referenc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD9582N, BD9582F. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD9582N, BD9582F
Manufacturer
ROHM ↗
File Size
487.68 KB
Datasheet
BD9582F-ROHM.pdf
Description
EARTH LEAKAGE CURRENT DETECTOR
Note
This datasheet PDF includes multiple part numbers: BD9582N, BD9582F.
Please refer to the document for exact specifications by model.
