BD9582F-M

EARTH LEAKAGE CURRENT DETECTOR

ROHM

BD9582F-M Features

* Small temperature fluctuation and high input sensitivity

* Wide operating temperature range

* Packages SOP8 W(Typ.) x D(Typ.) x H(Max.) 5.00mm x 6.20mm x 1.71mm

* Applications

* Earth leakage circuit breaker

* Earth leakage circuit relay

* Typical Application Circuit E

BD9582F-M General Description

BD9582F-M integrates leakage detector and amplifier. Especially, it is suitable for high sensitivity and a highspeed operation use, and since the operating temperature range is wide, it can be used for various uses.
*Key Specifications
* Operating supply voltage range： 12V to 22V
* O.

BD9582F-M Datasheet (457.97 KB)

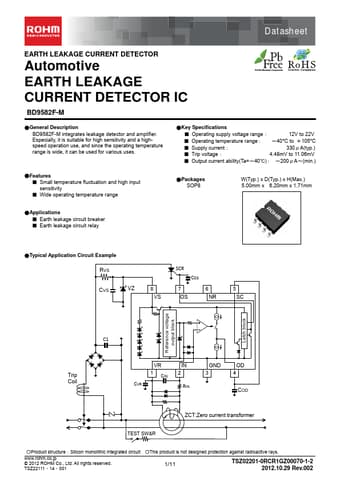

BD9582F-M Datasheet Preview — Preview of BD9582F-M PDF

Datasheet Details

Part number:

BD9582F-M

Manufacturer:

ROHM ↗

File Size:

457.97 KB

Description:

Earth leakage current detector.
