BD95830MUV, 2ch DC/DC converter

System Power Supply ICs for TVs Built-in FET Synchronous Rectification Type DC/DC converters H3RegTM Type BD95830MUV No.11034EBT08 *.
BD95830MUV is a 2ch switching regulator that can generate low output voltages (0.

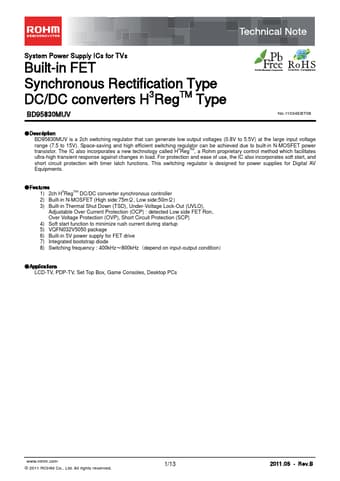

datasheet Preview Page 1 from Datasheet4u.com

BD95830MUV-ROHM.pdf

BD95830MUV Datasheet Preview — Preview of BD95830MUV PDF

Datasheet Details

Part number:

BD95830MUV

Manufacturer:

ROHM ↗

File Size:

424.32 KB

Description:

2ch DC/DC converter

Features

* 1) 2ch H3RegTM DC/DC converter synchronous controller 2) Built-in N-MOSFET (High side:75mΩ, Low side:50mΩ) 3) Built-in Thermal Shut Down (TSD), Under-Voltage Lock-Out (UVLO), Adjustable Over Current Protection (OCP) : detected Low side FET Ron, Over Voltage Protection (OVP), Short Circuit Protection

Applications

* LCD-TV, PDP-TV, Set Top Box, Game Consoles, Desktop PCs www. rohm. com © 2011 ROHM Co. , Ltd. All rights reserved. 1/13 2011.05 - Rev. B BD95830MUV Technical Note
* Maximum Absolute Ratings (Ta=25℃) Parameter Symbol Ratings Unit Input Voltage BOOT Voltage BOOT-SW Voltage Output Voltage VI
