BD95841MUV

1ch Synchronous Buck DC/DC Converter

BD95841MUV Features

* Input Voltage Range: 7.5V to 15.0V Reference Voltage: 0.8V±1.5% Output Voltage Range: 0.8V to 5.5V Output Current: 4.0A (Max.) Switching Frequency: 500kHz to 800kHz （depend on input-output condition） Built-in Power MOS FET High-side Nch FET ON resistance: 65mΩ(typ.) Low-side Nch FET ON

BD95841MUV General Description

BD95841MUV is a 1ch synchronous buck converter that can generate output voltage (0.8V to 5.5V) at the input voltage range (7.5V to 15V). Space-saving and high efficient switching regulator can be achieved due to built-in N-MOSFET power transistors. The IC also incorporates H3RegTM technology, a Rohm.

BD95841MUV Datasheet (777.07 KB)

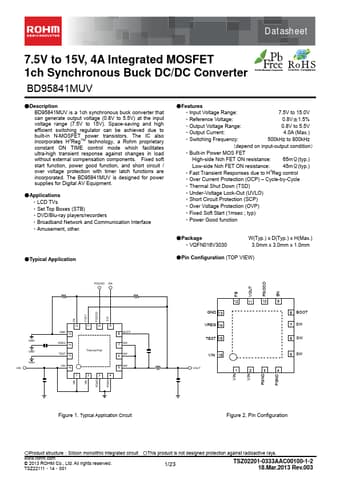

Preview of BD95841MUV PDF

Datasheet Details

Part number:

BD95841MUV

Manufacturer:

ROHM ↗

File Size:

777.07 KB

Description:

1ch synchronous buck dc/dc converter.
