HAF1008 - P-Channel MOSFET

Name: HAF1008
SKU: HAF1008-948937

Renesas

📥 Download Datasheet

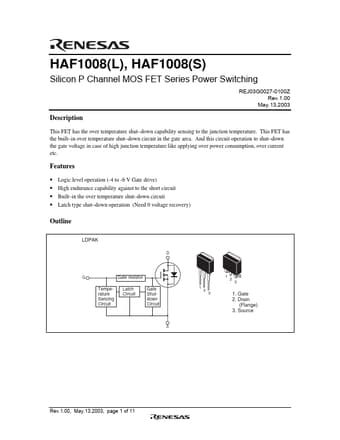

HAF1008 Datasheet Preview — Preview of HAF1008 PDF

Datasheet Details

Part number	HAF1008
Manufacturer	Renesas
File Size	110.85 KB
Description	P-Channel MOSFET
Datasheet	HAF1008-Renesas.pdf

HAF1008 Product details

Description

This FET has the over temperature shut down capability sensing to the junction temperature. in over temperature shut down circuit in the gate area. down the gate voltage in case of high junction temperature like applying over power consumption, over current etc.

Features

Logic level operation (-4 to -6 V Gate drive).
High endurance capability against to the short circuit.
Built.
in the over temperature shut.
down circuit.
Latch type shut.
down operation (Need 0 voltage recovery) Outline LDPAK D G Gate resistor Temperature Sencing Circuit Latch Circuit Gate Shutdown Circuit S 1 2 3 1 2 3 1. Gate 2. Drain (Flange) 3. Source Rev.1.00, May.13.2003, page 1 of 11 HAF1008(L), HAF1008(S) Absolute Maxi.
