HAF1008S, HAF1008 P-Channel MOSFET

HAF1008S Description

HAF1008(L), HAF1008(S) Silicon P Channel MOS FET Series Power Switching REJ03G0027-0100Z Rev.1.00 May.13.2003 .
This FET has the over temperature shut. down capability sensing to the junction temperature. in over temperature.

HAF1008S Features

* Logic level operation (-4 to -6 V Gate drive)
* High endurance capability against to the short circuit
* Built
* in the over temperature shut
* down circuit
* Latch type shut
* down operation (Need 0 voltage recovery) Outline LDPAK D G Gate resi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HAF1008S, HAF1008. Please refer to the document for exact specifications by model.

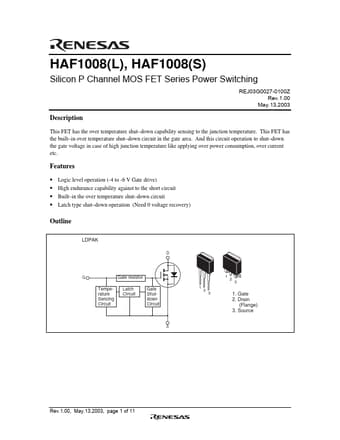

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HAF1008S, HAF1008
Manufacturer
Renesas ↗
File Size
110.85 KB
Datasheet
HAF1008-Renesas.pdf
Description
P-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: HAF1008S, HAF1008.
Please refer to the document for exact specifications by model.
