HAF1008L, HAF1008 Datasheet - Renesas

HAF1008L - P-Channel MOSFET

This FET has the over temperature shut *down capability sensing to the junction temperature.

This FET has the built *in over temperature shut *down circuit in the gate area.

And this circuit operation to shut *down the gate voltage in case of high junction temperature lik

HAF1008L Features

* Logic level operation (-4 to -6 V Gate drive)

* High endurance capability against to the short circuit

* Built

* in the over temperature shut

* down circuit

* Latch type shut

* down operation (Need 0 voltage recovery) Outline LDPAK D G Gate resi

HAF1008-Renesas.pdf

This datasheet PDF includes multiple part numbers: HAF1008L, HAF1008. Please refer to the document for exact specifications by model.

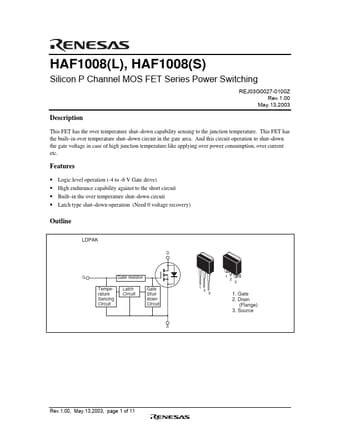

HAF1008L Datasheet Preview Page 2 HAF1008L Datasheet Preview Page 3

Datasheet Details

Part number:

HAF1008L, HAF1008

Manufacturer:

Renesas ↗

File Size:

110.85 KB

Description:

P-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HAF1008L, HAF1008.
Please refer to the document for exact specifications by model.
