HIP1011 - PCI Hot Plug Controller

Datasheet Summary

Description

-12V Supply Input.

Also provides power to the -12V overcurrent circuitry.

5V CMOS Fault Output; LOW = FAULT.

Features

Controls Distribution of Four Supplies: +5V, +3.3V, +12V, and -12V.
Internal MOSFET Switches for +12V and -12V Outputs.
Microprocessor Interface for On/Off Control and Fault Reporting.
Adjustable Overcurrent Protection for All Supplies.
Provides Fault Isolation.
Adjustable Turn-On Slew Rate.
Minimum Parts Count Solution.
No Charge Pump.
Pb-Free Package Options.

Datasheet Details

Part number	HIP1011
Manufacturer	Renesas
File Size	448.93 KB
Description	PCI Hot Plug Controller
Datasheet	HIP1011 Datasheet

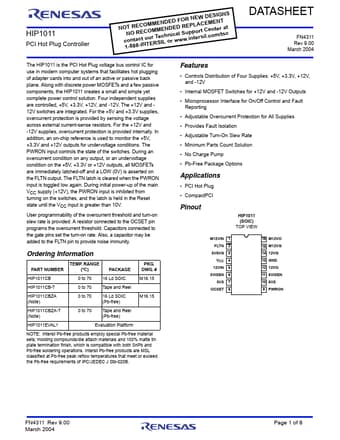

Additional preview pages of the HIP1011 datasheet.

📁 Similar Datasheet

HIP1030 - 1A High Side Driver with Overload Protection (Intersil Corporation)

HIP1031 - Half Amp High Side Driver with Overload Protection (Intersil Corporation)

HIP1090 - Protected High Side Power Switch with Transient Suppression (Intersil Corporation)

HIP0063 - Hex Low Side MOSFET Driver with Serial or Parallel Interface and Diagnostic Fault Control (Intersil Corporation)

HIP2106 - 100V/1A Peak/ Low Cost/ High Frequency Half Bridge Driver (Intersil Corporation)

HIP2500 - Half Bridge 500VDC Driver (Harris Corporation)

HIP4011 - Three Phase Brushless DC Motor Controller (Intersil Corporation)

HIP4081 - 80V/2.5A Peak/ High Frequency Full Bridge FET Driver (Intersil Corporation)

HIP5010 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge (Intersil Corporation)

HIP5011 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge (Intersil Corporation)

Full PDF Text Transcription

Click to expand full text

HIP1011 PCI Hot Plug Controller NOc1NTo-8nOR8taE8Rc-CEItNOCoTMOuErMMRTMESeNIcELhDNonEDriDcEwaDFlwOSRwRuE.ipPnNpLtEeoArWrsCt iCElD.ceMEonSEmtINeG/rTtNsacSt DATASHEET FN4311 Rev 9.00 March 2004 The HIP1011 is the PCI Hot Plug voltage bus control IC for use in modern computer systems that facilitates hot plugging of adapter cards into and out of an active or passive back plane. Along with discrete power MOSFETs and a few passive components, the HIP1011 creates a small and simple yet complete power control solution. Four independent supplies are controlled, +5V, +3.3V, +12V, and -12V. The +12V and 12V switches are integrated. For the +5V and +3.3V supplies, overcurrent protection is provided by sensing the voltage across external current-sense resistors.
