HIP1011B - PCI Hot Plug Controller

Datasheet Summary

Description

-12V Supply Input.

Also provides power to the -12V overcurrent circuitry.

5V CMOS Fault Output; LOW = FAULT.

Features

Allows for System Centralized Voltage Monitoring.
Adjustable Delay to Fault Notification and Latch-Off.
Controls Four Supplies: +5V, +3.3V, +12V, and -12V.
Internal MOSFET Switches for +12V and -12V Outputs.
P Interface for On/Off Control and Fault Reporting.
Adjustable Overcurrent Protection for All Supplies.
Provides Overcurrent Fault Isolation.
Adjustable Turn-On Slew Rate.
Minimum Parts Count Solution.

Datasheet Details

Part number	HIP1011B
Manufacturer	Renesas
File Size	523.28 KB
Description	PCI Hot Plug Controller
Datasheet	HIP1011B Datasheet
Additional preview pages of the HIP1011B datasheet.

📁 Similar Datasheet

HIP1030 - 1A High Side Driver with Overload Protection (Intersil Corporation)

HIP1031 - Half Amp High Side Driver with Overload Protection (Intersil Corporation)

HIP1090 - Protected High Side Power Switch with Transient Suppression (Intersil Corporation)

HIP0063 - Hex Low Side MOSFET Driver with Serial or Parallel Interface and Diagnostic Fault Control (Intersil Corporation)

HIP2106 - 100V/1A Peak/ Low Cost/ High Frequency Half Bridge Driver (Intersil Corporation)

HIP2500 - Half Bridge 500VDC Driver (Harris Corporation)

HIP4011 - Three Phase Brushless DC Motor Controller (Intersil Corporation)

HIP4081 - 80V/2.5A Peak/ High Frequency Full Bridge FET Driver (Intersil Corporation)

HIP5010 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge (Intersil Corporation)

HIP5011 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge (Intersil Corporation)

Full PDF Text Transcription

Click to expand full text

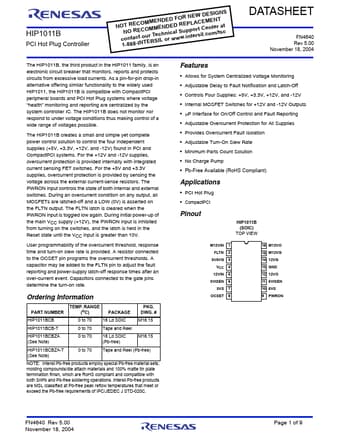

HIP1011B PCI Hot Plug Controller NOc1NTo-8nOR8taE8Rc-CEItNOCoTMOuErMMRTMESeNIcELhDNonEDriDcEwaDFlwOSRwRuE.ipPnNpLtEeoArWrsCt iCElD.ceMEonSEmtIeNG/rTtNsacSt DATASHEET FN4640 Rev 5.00 November 18, 2004 The HIP1011B, the third product in the HIP1011 family, is an electronic circuit breaker that monitors, reports and protects circuits from excessive load currents. As a pin-for-pin drop-in alternative offering similar functionality to the widely used HIP1011, the HIP1011B is compatible with CompactPCI peripheral boards and PCI Hot Plug systems where voltage “health” monitoring and reporting are centralized by the system controller IC. The HIP1011B does not monitor nor respond to under voltage conditions thus making control of a wide range of voltages possible.
