HIP1012A - Dual Power Distribution Controller

Datasheet Summary

Description

Connect to source of associated external N-Channel MOSFET switch to sense output voltage.

Connect to the gate of associated N-Channel MOSFET switch.

Features

HOT SWAP Dual Power Distribution Control for +5V and +12V or +5V and +3.3V.
Provides Fault Isolation.
Programmable Current Regulation Level.
Programmable Time Out.
Charge Pump Allows the Use of N-Channel MOSFETs.
Power Good and Overcurrent Latch Indicators.
Enhanced Overcurrent Sensitivity Available.
Redundant Power On Controls.
Adjustable Turn-On Ramp.
Protection During Turn-On.
Two Levels of Cur.

Datasheet Details

Part number	HIP1012A
Manufacturer	Renesas
File Size	926.62 KB
Description	Dual Power Distribution Controller
Datasheet	HIP1012A Datasheet
Additional preview pages of the HIP1012A datasheet.

📁 Similar Datasheet

HIP1030 - 1A High Side Driver with Overload Protection (Intersil Corporation)

HIP1031 - Half Amp High Side Driver with Overload Protection (Intersil Corporation)

HIP1090 - Protected High Side Power Switch with Transient Suppression (Intersil Corporation)

HIP0063 - Hex Low Side MOSFET Driver with Serial or Parallel Interface and Diagnostic Fault Control (Intersil Corporation)

HIP2106 - 100V/1A Peak/ Low Cost/ High Frequency Half Bridge Driver (Intersil Corporation)

HIP2500 - Half Bridge 500VDC Driver (Harris Corporation)

HIP4011 - Three Phase Brushless DC Motor Controller (Intersil Corporation)

HIP4081 - 80V/2.5A Peak/ High Frequency Full Bridge FET Driver (Intersil Corporation)

HIP5010 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge (Intersil Corporation)

HIP5011 - 7V/ 17A SynchroFET Complementary Drive Synchronous Half-Bridge (Intersil Corporation)

Full PDF Text Transcription

Click to expand full text

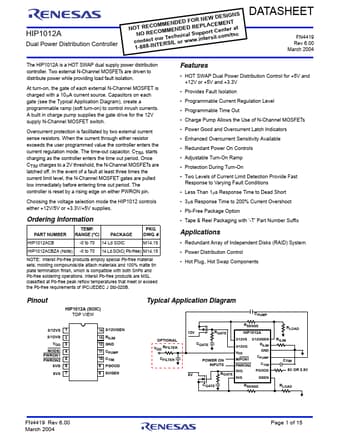

HIP1012A Dual Power Distribution Controller NOc1NTo-8nOR8taE8Rc-CEItNOCoTMOuErMMRTMESeNIcELhDNonEDriDcEwaDFlwOSRwRuE.ipPnNpLtEeoArWrsCt iCElD.ceMEonSEmtIeNG/rTtNsacSt DATASHEET FN4419 Rev 6.00 March 2004 The HIP1012A is a HOT SWAP dual supply power distribution controller. Two external N-Channel MOSFETs are driven to distribute power while providing load fault isolation. At turn-on, the gate of each external N-Channel MOSFET is charged with a 10A current source. Capacitors on each gate (see the Typical Application Diagram), create a programmable ramp (soft turn-on) to control inrush currents. A built in charge pump supplies the gate drive for the 12V supply N-Channel MOSFET switch. Overcurrent protection is facilitated by two external current sense resistors.
