HIP2060 - Half Bridge Power MOSFET

HIP2060 Description

DATASHEET HIP2060 60V, 10A Half Bridge Power MOSFET Array .
The HIP2060 is a power half-bridge MOSFET array that consists of two matched N-Channel enhancement-mode MOS transistors.

HIP2060 Features

* Two 10A Power MOS N-Channel Transistors
* Output Voltage to 60V
* rDS(ON)
* 0.135 Max Per Transistor at VGS = 15V
* rDS(ON)
* . 0.15 Max Per Transistor at VGS = 10V
* Pulsed Current
* 25A Each Transistor
* Ava

HIP2060 Applications

* such as Motor Controls, Uninterruptable Power Supplies, Switch Mode Power Supplies, Voice Coil Motors, and Class D Power Amplifier. Symbol DRAIN1 5 GATE1 1 Z1 GATE2 2 Z2 SOURCE2 3, TAB D1 SOURCE1 = DRAIN2 4 Packages JEDEC TS-001AA (ALTERNATE VERSION) HIP2060 AS1 54321 (TAB) Z5.067B (SIP) HIP

📥 Download Datasheet

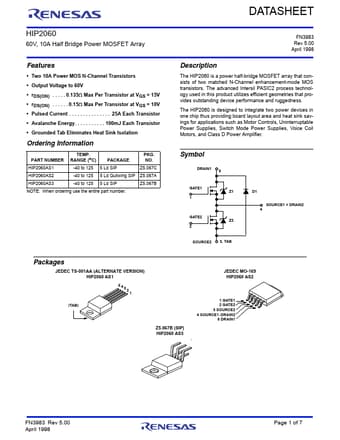

Preview of HIP2060 PDF
datasheet Preview Page 2 datasheet Preview Page 3
