RJP30H1DPP-M0 Datasheet - Renesas

N-Channel IGBT

RJP30H1DPP-M0 Features

* Trench gate and thin wafer technology (G6H-II series) High speed switching: tr =80 ns typ., tf = 150 ns typ. Low collector to emitter saturation voltage: VCE(sat)= 1.5 V typ. Low leak current: ICES = 1 A max. Isolated package TO-220FL R07DS0466EJ0200 Rev.2.00 Jun 15, 2

RJP30H1DPP-M0 General Description

of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. Renesa.

RJP30H1DPP-M0 Datasheet (212.16 KB)

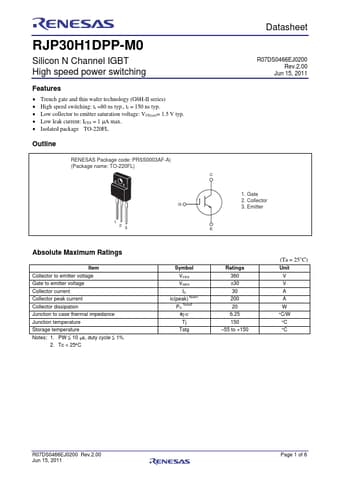

Preview of RJP30H1DPP-M0 PDF

Datasheet Details

Part number:

RJP30H1DPP-M0

Manufacturer:

Renesas ↗

File Size:

212.16 KB

Description:

N-channel igbt.
