SGM61307 Datasheet, Converter, SG Micro

SGM61307 Features

  • Converter include current limit, hiccup mode short-circuit protection, thermal shutdown with auto recovery and output over-voltage protection. The SGM61307A/B is available in a Green SOT-23-6 pac

PDF File Details

Part number:

SGM61307

Manufacturer:

SG Micro

File Size:

2.06MB

Download:

📄 Datasheet

Description:

600ma synchronous buck converter. The SGM61307A/B is a synchronous Buck DC/DC converter with a wide 4V to 36V input voltage range and 600mA output current capability.

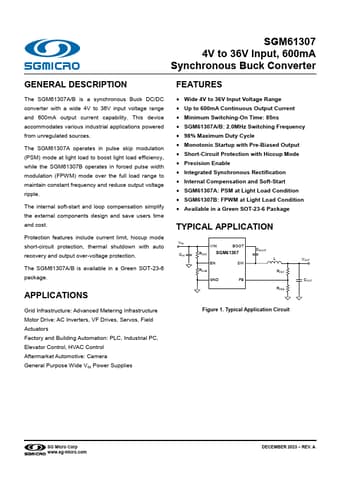

Datasheet Preview: SGM61307 📥 Download PDF (2.06MB)
Page 2 of SGM61307 Page 3 of SGM61307

SGM61307 Application

  • Applications powered from unregulated sources. The SGM61307A operates in pulse skip modulation (PSM) mode at light load to boost light load efficien
