SGM61012S - 1.2A/2A High-Efficiency Buck Converters

SGM61012S Description

SGM61012S/SGM61022S 1.2A/2A High-Efficiency Buck Converters with AHP-COT Mode GENERAL .
The SGM61012S and SGM61022S are efficient high-frequency synchronous Buck converters with an input voltage range of 2.

SGM61012S Features

* Input Voltage Range: 2.3V to 5.5V
* Output Current: SGM61012S: 1.2A SGM61022S: 2A
* 8.5μA (TYP) Ultra-Low Quiescent Current in DSM
* AHP-COT Architecture
* Fast Transient Regulation
* 100% Duty Cycle Capability
* High-Efficiency DSM under Light Load
* Output Dischar

SGM61012S Applications

* General Purpose Point-of-Load Power Supplies Battery-Powered Applications TYPICAL APPLICATION VIN VIN PG 10kΩ C1 C2 1μH EN SGM61012S/ SW SGM61022S MODE SENSE GND FB R3 180kΩ Power Good VOUT C3 R1 C4 R2 Figure 1. Typical Application Circuit SG Micro Corp www. sg-micro. com JUNE 20

📥 Download Datasheet

Preview of SGM61012S PDF

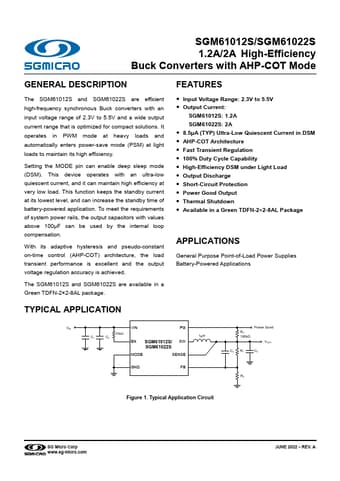

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM61012S
Manufacturer
SG Micro
File Size
1.13 MB
Datasheet
SGM61012S-SGMicro.pdf
Description
1.2A/2A High-Efficiency Buck Converters
