SGM61022S

1.2A/2A High-Efficiency Buck Converters

SGM61022S Features

* Input Voltage Range: 2.3V to 5.5V

* Output Current: SGM61012S: 1.2A SGM61022S: 2A

* 8.5μA (TYP) Ultra-Low Quiescent Current in DSM

* AHP-COT Architecture

* Fast Transient Regulation

* 100% Duty Cycle Capability

* High-Efficiency DSM under Light Load

* Output Dischar

SGM61022S General Description

The SGM61012S and SGM61022S are efficient high-frequency synchronous Buck converters with an input voltage range of 2.3V to 5.5V and a wide output current range that is optimized for compact solutions. It operates in PWM mode at heavy loads and automatically enters power-save mode (PSM) at light loa.

SGM61022S Datasheet (1.13 MB)

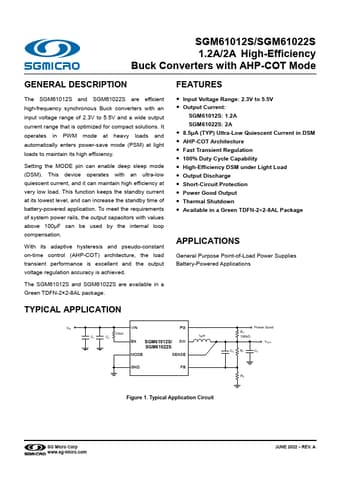

Preview of SGM61022S PDF
