SGM61013 - 1A Micro-Point-of-Load Buck Converter

SGM61013 Description

SGM61013 10MHz, 1A Micro-Point-of-Load Buck Converter GENERAL .
The Micro-Point-of-Load (µPOL) SGM61013 is a family of high-efficient and high-frequency Buck DC/DC converter.

SGM61013 Features

* 2.3V to 5.5V Input Voltage Range
* SGM61013A: 1.8V Fixed Output Voltage
* SGM61013B: 1.2V/3.3V Fixed Output Voltages
* 1A Output Current
* 20μA (TYP) Quiescent Current
* Up to 95% Efficiency
* Selectable PFM Light Load Operation
* Fast Load Transient Response

SGM61013 Applications

* Optical Modules Cellular Phones Tablets Wireless Data Cards TYPICAL APPLICATION VIN 4.7μF EN MODE VIN LOUT SW SGM61013 EN FB MODE GND Embedded Power Supply Wearables IoT Security and Surveillance VOUT 4.7μF Typical Efficiency, Mode = Low VOUT = 3.3V Figure 1. Typical Application Circui

📥 Download Datasheet

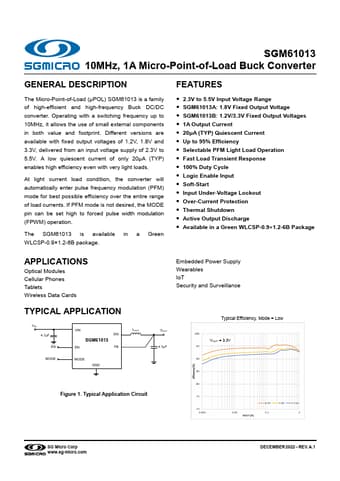

Preview of SGM61013 PDF
