SGM61024 - 2A Synchronous Buck Converter

SGM61024 Description

SGM61024 2.4V to 5.5V, 2A Synchronous Buck Converter GENERAL .
FEATURES The SGM61024 is a high frequency synchronous Buck converter with an input voltage range from 2.

SGM61024 Features

* The SGM61024 is a high frequency synchronous Buck converter with an input voltage range from 2.4V to 5.5V and a wide output current range, optimized for compact solutions. For SGM61024A, to keep the high efficiency in the whole load range, the device operates in pulse width modulation (PWM) mode at

SGM61024 Applications

* Battery-Powered Applications Point-of-Load Processor Power Supplies Hard Disk Drives (HDD)/Solid State Drives (SSD) TYPICAL APPLICATION VIN 2.4V to 5.5V R3 100kΩ C1 C2 NS 4.7µF Power Good VIN SW EN SGM61024 PG FB GND L1 0.47µH VOUT 1.8V C3 C4 10µF 10µF C5 NS R1 200kΩ C6 5pF R2

📥 Download Datasheet

Preview of SGM61024 PDF

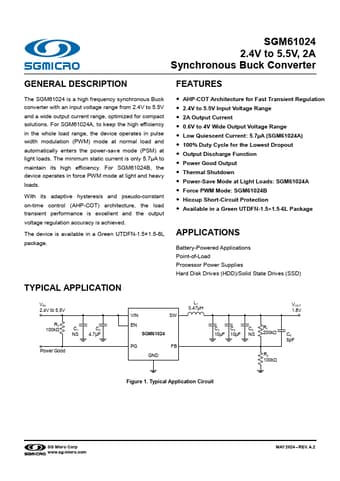

datasheet Preview Page 2 datasheet Preview Page 3
