STGP20NB60H Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGP20NB60H General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix ”H” identifies a family optimized to achieve very low switching times for high frequency applications.

STGP20NB60H Datasheet (86.64 KB)

STGP20NB60H Datasheet Preview — Preview of STGP20NB60H PDF

Datasheet Details

Part number:

STGP20NB60H

Manufacturer:

STMicroelectronics ↗

File Size:

86.64 KB

Description:

N-channel igbt.

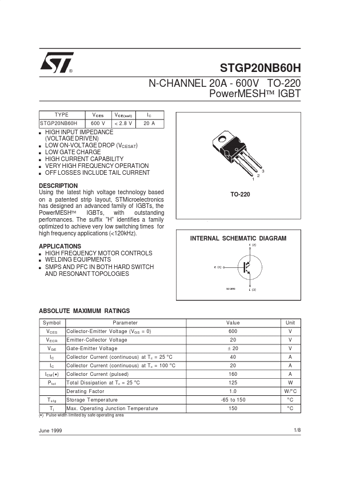

® STGP20NB60H N-CHANNEL 20A - 600V TO-220 PowerMESH™ IGBT T YPE STGP20NB60H s V CES 600 V V CE(sat) < 2.8 V IC 20 A s s s s s HIGH INPUT IMPEDA.
