STGP20NB60K Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGP20NB60K General Description

INTERNAL SCHEMATIC DIAGRAM Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH ™ IGBTs, with outstanding performances. The suffix “K” identifies a family optimized for high frequency motor control appli.

STGP20NB60K Datasheet (42.57 KB)

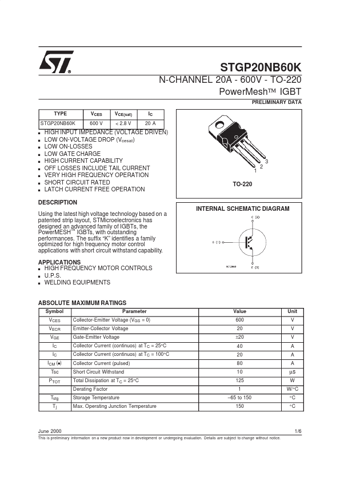

STGP20NB60K Datasheet Preview — Preview of STGP20NB60K PDF

Datasheet Details

Part number:

STGP20NB60K

Manufacturer:

STMicroelectronics ↗

File Size:

42.57 KB

Description:

N-channel igbt.
STGP20NB60K N-CHANNEL 20A - 600V - TO-220 PowerMesh™ IGBT PRELIMINARY DATA TYPE STGP20NB60K s s s s s s s s s VCES 600 V VCE(sat) < 2.8 V IC 20 A .
