STGP20V60DF, STGB20V60DF - 600V 20A very high speed trench gate field-stop IGBT

STMicroelectronics

📥 Download Datasheet

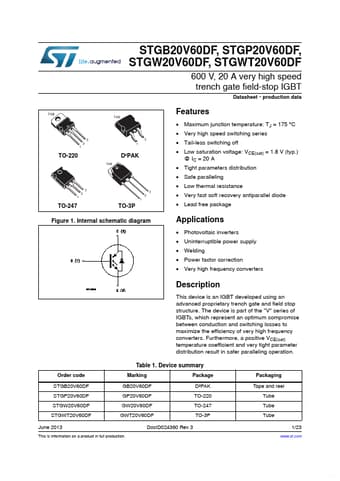

STGP20V60DF Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP20V60DF, STGB20V60DF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STGP20V60DF, STGB20V60DF
Manufacturer	STMicroelectronics ↗
File Size	2.07 MB
Description	600V 20A very high speed trench gate field-stop IGBT
Datasheet	STGB20V60DF-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STGP20V60DF, STGB20V60DF. Please refer to the document for exact specifications by model.

STGP20V60DF Product details

Description

This device is an IGBT developed using an advanced proprietary trench gate and field stop structure.

Features

Maximum junction temperature: TJ = 175 °C.
Very high speed switching series 3 2 1 1 3.
Tail-less switching off.
Low saturation voltage: VCE(sat) = 1.8 V (typ. ) @ IC = 20 A.
Tight parameters distribution.
Safe paralleling.
Low thermal resistance 3 TO-220 TAB D²PAK 3 2 1 1 2.
Very fast soft recovery antiparallel diode.
Lead free package TO-247 TO-3P Figure 1. Internal schematic diagram.
