STGP20IH65DF - IGBT

STMicroelectronics

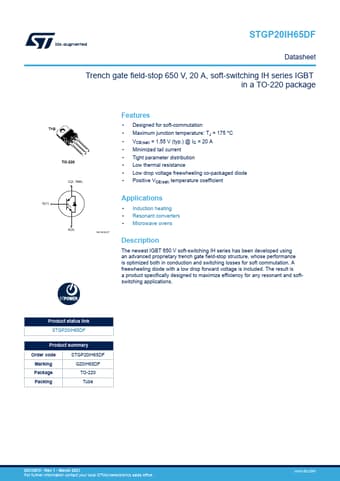

STGP20IH65DF Datasheet Preview — Preview of STGP20IH65DF PDF

Datasheet Details

Part number	STGP20IH65DF
Manufacturer	STMicroelectronics ↗
File Size	285.63 KB
Description	IGBT
Datasheet	STGP20IH65DF-STMicroelectronics.pdf

STGP20IH65DF Product details

Description

The newest IGBT 650 V soft-switching IH series has been developed using an advanced proprietary trench gate field-stop structure, whose performance is optimized both in conduction and switching losses for soft commutation.

Features

Designed for soft-commutation.
Maximum junction temperature: TJ = 175 °C.
VCE(sat) = 1.55 V (typ. ) @ IC = 20 A.
Minimized tail current.
Tight parameter distribution.
Low thermal resistance.
Low drop voltage freewheeling co-packaged diode.
Positive VCE(sat) temperature coefficient.
