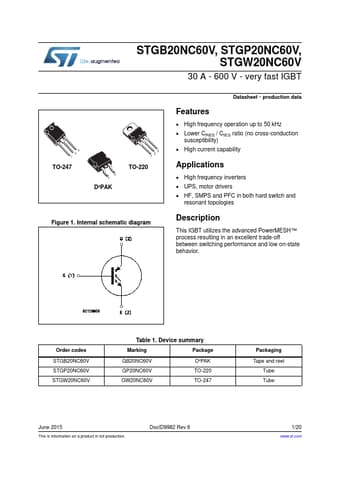

STGP20NC60V Datasheet - STMicroelectronics

very fast IGBT

STGP20NC60V Features

* High frequency operation up to 50 kHz Lower CRES / CIES ratio (no cross-conduction susceptibility) High current capability 1 2 3 1 2 3 Applications

* TO-247 3 1 TO-220 High frequency inverters UPS, motor drivers HF, SMPS and PFC in both hard switch and resonant

STGP20NC60V General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GB20NC60V GP20NC60V GW20NC60V Package D²PAK TO-220 TO-247 Packaging Tape and reel Tub.

STGP20NC60V Datasheet (436.92 KB)
