STH6N100 Datasheet - ST Microelectronics

STH6N100 N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR

STH6N100 STH6N100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STH6N100 STH6N100FI s s s s s s s V DSS 1000 V 1000 V R DS( on) < 2Ω < 2Ω ID 6A 3.7 A TYPICAL RDS(on) = 1.75 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INPUT CAPACITANCE LOW GATE CHARGE APPLICATION ORIENTED CHARACTERIZATION 3 2 1 3 2 1 TO-218 ISOWATT218 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s CONSUMER AND INDUSTRIAL LIGH.

STH6N100 Datasheet (202.73 KB)

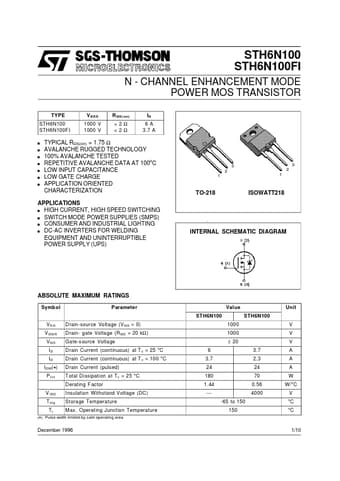

Preview of STH6N100 PDF
STH6N100 Datasheet Preview Page 2 STH6N100 Datasheet Preview Page 3

Datasheet Details

Part number:

STH6N100

Manufacturer:

STMicroelectronics ↗

File Size:

202.73 KB

Description:

N-channel enhancement mode power mos transistor.
