STH6N95K5-2 N-channel Power MOSFET

STH6N95K5-2 Description

STH6N95K5-2 N-channel 950 V, 1 Ω typ., 6 A MDmesh™ K5 Power MOSFET in a H²PAK-2 package Datasheet - production data Figure 1: Internal schematic dia.
This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.

STH6N95K5-2 Features

* Order code VDS RDS(on) max. ID PTOT STH6N95K5-2 950 V 1.25 Ω 6 A 110 W
* Industry’s lowest RDS(on) x area
* Industry’s best figure of merit (FoM)
* Ultra low gate charge
* 100% avalanche tested

📥 Download Datasheet

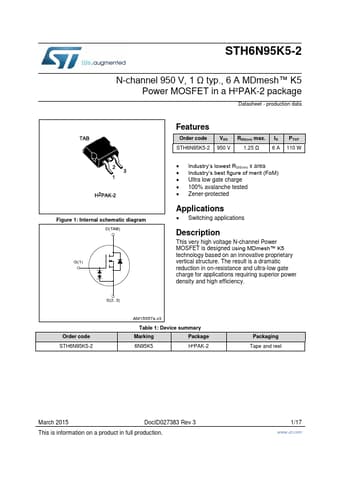

Preview of STH6N95K5-2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
