STHDLS101 - Level Translators

ST Microelectronics

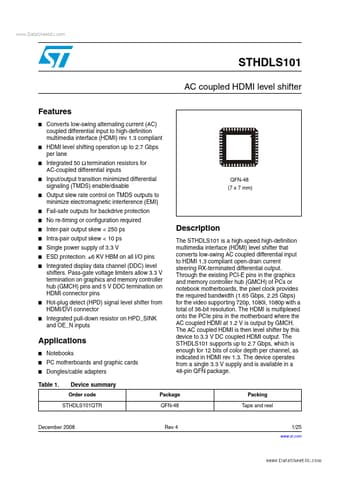

STHDLS101 Datasheet Preview — Preview of STHDLS101 PDF

Datasheet Details

Part number	STHDLS101
Manufacturer	STMicroelectronics ↗
File Size	534.27 KB
Description	Level Translators
Datasheet	STHDLS101_STMicroelectronics.pdf

STHDLS101 Product details

Description

The STHDLS101 is a high-speed high-definition multimedia interface (HDMI) level shifter that converts low-swing AC coupled differential input to HDMI 1.3 compliant open-drain current steering RX-terminated differential output.

Features

Converts low-swing alternating current (AC) coupled differential input to high-definition multimedia interface (HDMI) rev 1.3 compliant HDMI level shifting operation up to 2.7 Gbps per lane Integrated 50 Ω termination resistors for AC-coupled differential inputs Input/output transition minimized differential signaling (TMDS) enable/disable Output slew rate control on TMDS outputs to minimize electromagnetic interference (EMI) Fail-safe outputs for backdrive protection No re-timing or conf.
