STHDM1002A - 2-to-1 High Definition Multimedia Interface (HDMI) Switch

ST Microelectronics

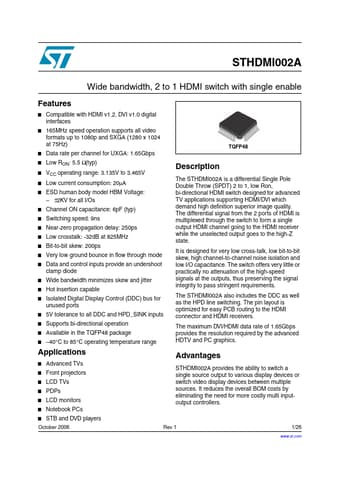

STHDM1002A Datasheet Preview — Preview of STHDM1002A PDF

Datasheet Details

Part number	STHDM1002A
Manufacturer	STMicroelectronics ↗
File Size	611.28 KB
Description	2-to-1 High Definition Multimedia Interface (HDMI) Switch
Datasheet	STHDM1002A_STMicroelectronics.pdf

STHDM1002A Product details

Description

The STHDMI002A is a differential Single Pole Double Throw (SPDT) 2 to 1, low Ron, bi-directional HDMI switch designed for advanced TV applications supporting HDMI/DVI which demand high definition superior image quality.

Features

Compatible with HDMI v1.2, DVI v1.0 digital interfaces 165MHz speed operation supports all video formats up to 1080p and SXGA (1280 x 1024 at 75Hz) Data rate per channel for UXGA: 1.65Gbps Low RON: 5.5 Ω(typ) VCC operating range: 3.135V to 3.465V Low current consumption: 20µA ESD human body model HBM Voltage:.
±2KV for all I/Os Channel ON capacitance: 6pF (typ) Switching speed: 9ns Near-zero propagation delay: 250ps Low crosstalk: -32dB at 825MHz Bit-to-bit skew: 200ps Very.
