STHDMI002A

2 to 1 HDMI switch

STHDMI002A Features

* Compatible with HDMI v1.2, DVI v1.0 digital interfaces

* 165MHz speed operation supports all video formats up to 1080p and SXGA (1280 x 1024 at 75Hz)

* Data rate per channel for UXGA: 1.65Gbps TQFP48

* Low RON: 5.5 Ω(typ)

* VCC operating range: 3.135V to 3.465V

* Low cu

STHDMI002A General Description

The STHDMI002A is a differential Single Pole Double Throw (SPDT) 2 to 1, low Ron, bi-directional HDMI switch designed for advanced TV applications supporting HDMI/DVI which demand high definition superior image quality. The differential signal from the 2 ports of HDMI is multiplexed through the swit.

STHDMI002A Datasheet (551.75 KB)

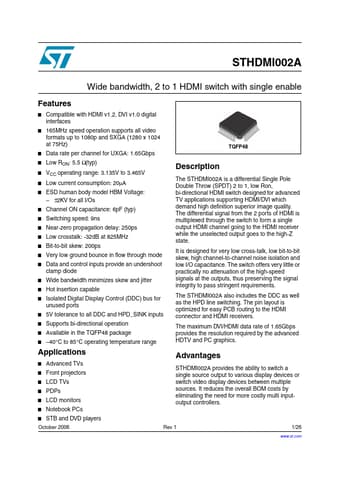

Preview of STHDMI002A PDF

Datasheet Details

Part number:

STHDMI002A

Manufacturer:

STMicroelectronics ↗

File Size:

551.75 KB

Description:

2 to 1 hdmi switch.
