STP16NK60Z Datasheet - ST Microelectronics

STP16NK60Z N-CHANNEL MOSFET

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements .
STP16NK60Z - STB16NK60Z-S STW16NK60Z N-CHANNEL 600V - 0.38Ω - 14A TO-220 / I2SPAK / TO-247 Zener-Protected SuperMESH™ MOSFET TYPE STP16NK60Z STB16NK60Z-S STW16NK60Z s s s s s s VDSS 600 V 600 V 600 V RDS(on) < 0.42 Ω < 0.42 Ω < 0.42 Ω ID 14 A 14 A 14 A Pw 190 W 190 W 190 W 3 1 2 TYPICAL RDS(on) = 0.38 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED VERY LOW INTRINSIC CAPACITANCES VERY GOOD MANUFACTURING REPEATIBILITY 3 12 TO-220 I2SPAK 3 2 1 TO-247 DESCRI.

STP16NK60Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STP16NK60Z Datasheet (723.49 KB)

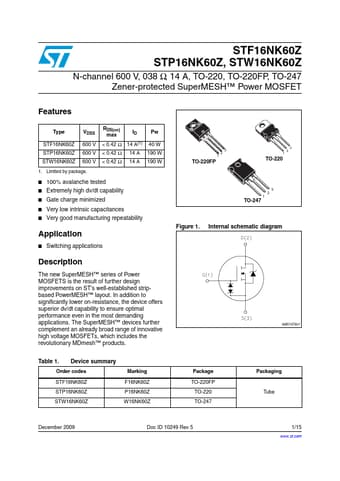

Preview of STP16NK60Z PDF

Datasheet Details

Part number:

STP16NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

723.49 KB

Description:

N-channel mosfet.
