STP16NF06 - N-Channel MOSFET

STP16NF06 Description

Isc N-Channel MOSFET Transistor *.

STP16NF06 Features

* Typical RDS(on)=0.08Ω
* With low gate drive requirements
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation INCHANGE Semiconductor STP16NF06

STP16NF06 Applications

* Solenold and relay dirvers
* DC-DC &DC-CAconverters
* Automotive environment
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±20 16 11 64

📥 Download Datasheet

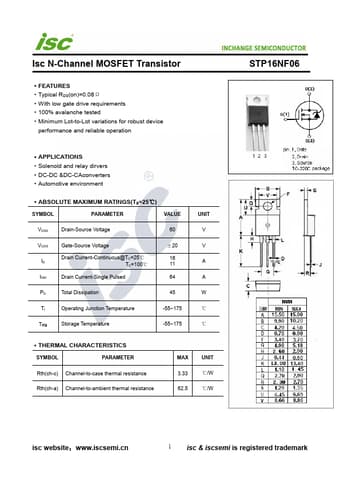

Preview of STP16NF06 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP16NF06
Manufacturer
INCHANGE
File Size
201.90 KB
Datasheet
STP16NF06-INCHANGE.pdf
Description
N-Channel MOSFET
