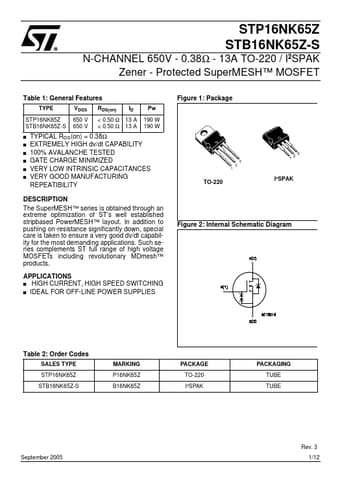

STP16NK65Z-S, STP16NK65Z N-CHANNEL 650V-0.38OHM-13A TO-220 I2SPAK Zener - Protected SuperMESH MOSFET

STP16NK65Z STB16NK65Z-S N-CHANNEL 650V - 0.38Ω - 13A TO-220 / I2SPAK Zener - Protected SuperMESH™ MOSFET Table 1: General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP16NK65Z_STMicroelectronics.pdf

STP16NK65Z-S Datasheet Preview — This datasheet PDF includes multiple part numbers: STP16NK65Z-S, STP16NK65Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP16NK65Z-S, STP16NK65Z

Manufacturer:

STMicroelectronics ↗

File Size:

286.33 KB

Description:

N-CHANNEL 650V-0.38OHM-13A TO-220 I2SPAK Zener - Protected SuperMESH MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP16NK65Z-S, STP16NK65Z.
Please refer to the document for exact specifications by model.

Features

* TYPE STP16NK65Z STB16NK65Z-S s s s s s s Figure 1: Package ID 13 A 13 A Pw 190 W 190 W VDSS 650 V 650 V RDS(on) < 0.50 Ω < 0.50 Ω TYPICAL RDS(on) = 0.38Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED VERY LOW INTRINSIC CAPACITANCES VERY GOOD MANUFACTURING REPEATIBIL

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES Figure 2: Internal Schematic Diagram Table 2: Order Codes SALES TYPE STP16NK65Z STB16NK65Z-S MARKING P16NK6
