STP19NB20FP, STP19NB20 N-CHANNEL MOSFET

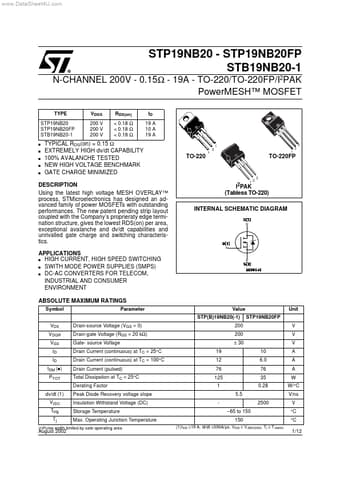

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com N-CHANNEL 200V - 0.15Ω - 19A - TO-220/TO-220FP/I2PAK PowerMESH™ MOSFET TYPE STP19NB20 STP19NB20FP STB19NB20-1 s s s s s STP19NB2.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP19NB20FP, STP19NB20. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STP19NB20FP, STP19NB20
Manufacturer
STMicroelectronics ↗
File Size
447.76 KB
Datasheet
STP19NB20_STMicroelectronics.pdf
Description
N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: STP19NB20FP, STP19NB20.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR TELECOM, INDUSTRIAL AND CONSUMER ENVIRONMENT ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (l) PTOT dv/dt (1) VISO Tstg Tj August 2002 Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (
