STP19NF20 Datasheet - STMicroelectronics

N-CHANNEL POWER MOSFET

STP19NF20 Features

* Type STB19NF20 STD19NF20 STF19NF20 STP19NF20 VDS RDS(on) max. 200 V 200 V 200 V 200 V 0.16 Ω 0.16 Ω 0.16 Ω 0.16 Ω ID 15 A 15 A 15 A 15 A PTOT 90 W 90 W 25 W 90 W 3 2 1 TO-220FP 3 2 1 TO-220 Figure 1. Internal schematic diagram '7$%

* Extremely high dv/dt capability

* G

STP19NF20 General Description

This Power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY™ process. The result is a product that matches or improves on the performance of comparable standard parts from other manufacturers. $0Y Order code STB19NF20 STD19NF20 STF19NF20 STP19NF20 Table 1..

STP19NF20 Datasheet (773.93 KB)

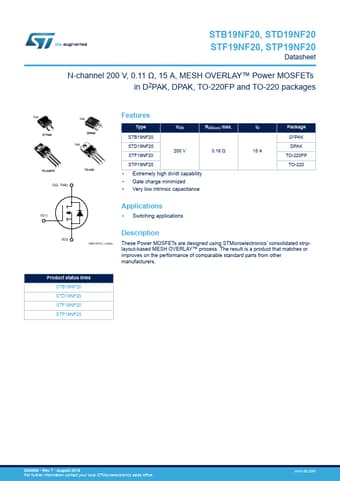

STP19NF20 Datasheet Preview — Preview of STP19NF20 PDF

Datasheet Details

Part number:

STP19NF20

Manufacturer:

STMicroelectronics ↗

File Size:

773.93 KB

Description:

N-channel power mosfet.
STB19NF20, STD19NF20, STF19NF20, STP19NF20 N-channel 200 V, 0.11 Ω typ., 15 A MESH OVERLAY™ Power MOSFET in D²PAK, DPAK, TO-220FP and TO-220 packages .
