STP190NF04 N-CHANNEL POWER MOSFET

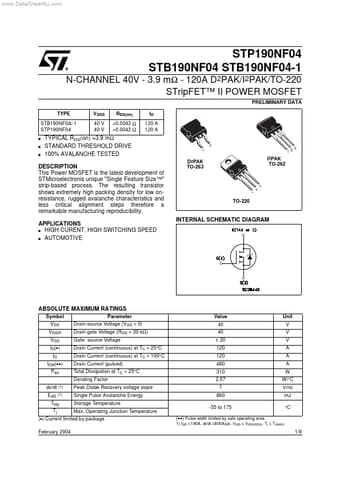

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com N-CHANNEL 40V - 3.9 mΩ - 120A D2PAK/I2PAK/TO-220 STripFET™ II POWER MOSFET TYPE STB190NF04/-1 STP190NF04 s s s STP190NF04 STB190.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

📥 Download Datasheet

Preview of STP190NF04 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s HIGH CURENT, HIGH SWITCHING SPEED s AUTOMOTIVE D2PAK TO-263 I2PAK TO-262 3 1 2 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
* ) ID IDM(
* ) Ptot dv/dt (1) Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gat
