STP190N55LF3 - N-CHANNEL POWER MOSFET

STMicroelectronics

📥 Download Datasheet

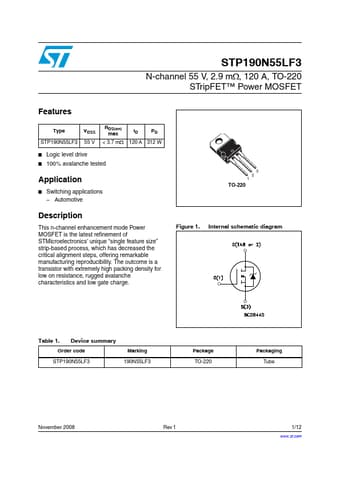

STP190N55LF3 Datasheet Preview — Preview of STP190N55LF3 PDF

Datasheet Details

Part number	STP190N55LF3
Manufacturer	STMicroelectronics
File Size	625.01 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP190N55LF3-STMicroelectronics.pdf

STP190N55LF3 Product details

Description

This n-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronics' unique “single feature size” strip-based process, which has decreased the critical alignment steps, offering remarkable manufacturing reproducibility.

Features

Type STP190N55LF3 VDSS 55 V RDS(on) max ID PD < 3.7 mΩ 120 A 312 W.
Logic level drive.
100% avalanche tested.
