STP19NM50N

N-channel Power MOSFETs

STP19NM50N Features

* Order codes VDS @ TJmax STF19NM50N STP19NM50N 550 V STW19NM50N RDS(on) max 0.25 Ω ID 14 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

* Switching applications ' 7$%

*  6  Description These

STP19NM50N General Description

These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most.

STP19NM50N Datasheet (352.04 KB)

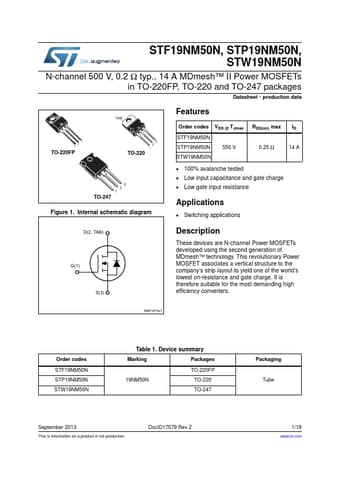

Preview of STP19NM50N PDF

Datasheet Details

Part number:

STP19NM50N

Manufacturer:

STMicroelectronics ↗

File Size:

352.04 KB

Description:

N-channel power mosfets.
STF19NM50N, STP19NM50N, STW19NM50N N-channel 500 V, 0.2 Ω typ., 14 A MDmesh™ II Power MOSFETs in TO-220FP, TO-220 and TO-247 packages Datasheet - prod.
